Deformation Fields and Grey Matter vs Grey Matter and White Matter¶

Data Loading¶

suppressWarnings(suppressMessages(library("tidyverse")))
suppressWarnings(suppressMessages(library("ggpubr")))
suppressWarnings(suppressMessages(library("rstatix")))

library(tidyverse)
library(ggpubr)
library(rstatix)


map_abb <- list("df_gm"= "DF+ǴM", "gm_wm"= "GM+WM")

all_results <- c()

df_eval <- list("crossval"= data.frame(), "test"= data.frame())


for (evaluation in names(df_eval)){
    for (mod in names(map_abb)){

      filename <- sprintf("%s_%s.csv", mod, evaluation)
      path_col <- file.path(getwd(), "..", "..", "..", "resources", filename)

      df_mod <- read.csv(path_col)
      df_mod$fusion <- map_abb[[mod]]

      df_eval[[evaluation]] <- rbind(df_eval[[evaluation]], df_mod)
    }
}
df_val <- df_eval[["crossval"]]
df_test <- df_eval[["test"]]

Validation data¶

head(df_val)

A data.frame: 6 × 4
	fold	r2	MAE	fusion
	<int>	<dbl>	<dbl>	<chr>
1	0	0.8026467	5.740682	DF+ǴM
2	1	0.7473344	6.313860	DF+ǴM
3	2	0.7362875	5.625505	DF+ǴM
4	3	0.7456859	5.830985	DF+ǴM
5	4	0.7941903	5.643035	DF+ǴM
6	5	0.7565052	5.573205	DF+ǴM

aggregate(df_val[,c("r2", "MAE")], list(df_val$fusion), mean)

A data.frame: 2 × 3
Group.1	r2	MAE
<chr>	<dbl>	<dbl>
DF+ǴM	0.7884606	5.548079
GM+WM	0.7896436	5.445226

Test data¶

head(df_test)

A data.frame: 6 × 5
	subjectID	gender	age	y_hat	fusion
	<chr>	<int>	<dbl>	<dbl>	<chr>
1	sub-474	1	34.01	40.33901	DF+ǴM
2	sub-292	1	23.73	31.65292	DF+ǴM
3	sub-382	1	65.91	46.45294	DF+ǴM
4	sub-434	1	67.24	56.62014	DF+ǴM
5	sub-395	0	45.03	35.61988	DF+ǴM
6	sub-306	1	30.18	39.87024	DF+ǴM

df_test["abs_diff"] <- abs(df_test$y_hat - df_test$age)

result_mean <- aggregate(df_test[,c("age", "y_hat", "abs_diff")], list(df_test$fusion), mean)
result_mean

A data.frame: 2 × 4
Group.1	age	y_hat	abs_diff
<chr>	<dbl>	<dbl>	<dbl>
DF+ǴM	42.37309	45.59776	6.896464
GM+WM	42.37309	39.80127	7.919839

Statistics¶

Paired t-test¶

colors <-c("#AB1111", "#143F6B")

pwc <- df_val %>%
  pairwise_t_test(
    MAE ~ fusion, paired = TRUE, alternative="less"
  )
pwc

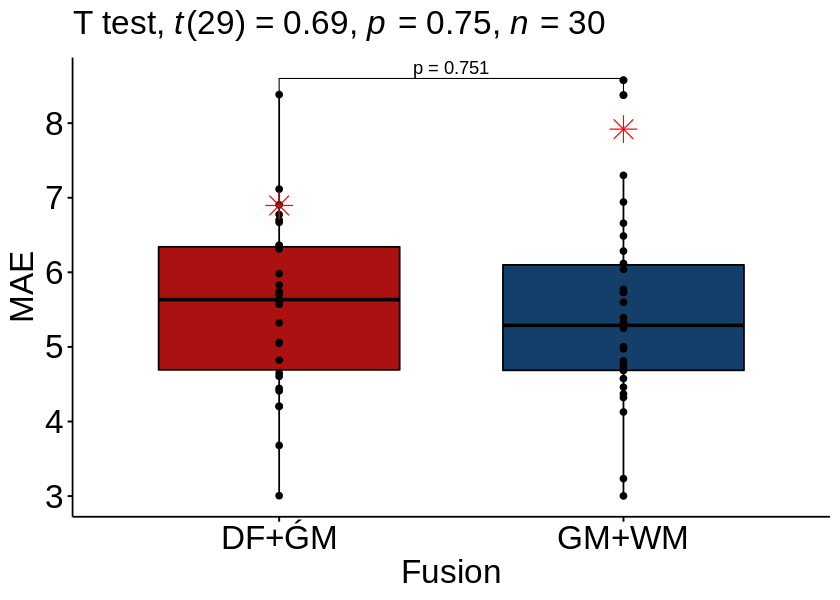

options(repr.plot.width = 7, repr.plot.height = 5)

bxp <- ggboxplot(df_val, x = "fusion", y = "MAE", add = "point", fill = colors,
                 xlab = "Fusion", ylab = "MAE") + theme(text = element_text(size=20))


pwc <- pwc %>% add_xy_position(x = "fusion")
bxp <- bxp +
  stat_pvalue_manual(pwc, label = "p = {p.adj}") +
  labs(
    subtitle = get_test_label(pwc, detailed = TRUE),
  ) + geom_point(data = data.frame(x = factor(result_mean[["Group.1"]]), y = result_mean[["abs_diff"]]),
                   aes(x=x, y=y),
                   color = 'red', shape=8, size=5)

bxp

A rstatix_test: 1 × 10
	.y.	group1	group2	n1	n2	statistic	df	p	p.adj	p.adj.signif
	<chr>	<chr>	<chr>	<int>	<int>	<dbl>	<dbl>	<dbl>	<dbl>	<chr>
1	MAE	DF+ǴM	GM+WM	30	30	0.6854774	29	0.751	0.751	ns

Warning message in if (fill %in% names(data) & is.null(add.params$fill)) add.params$fill <- fill:
“the condition has length > 1 and only the first element will be used”
